Range Rover P25A9 Fault: What Caused Oil System Warnings on a 2018 Velar?

Mr J hadn’t noticed anything unusual. His 2018 Range Rover Velar had been running as expected, with nothing to suggest a problem. Then the engine management light appeared on the dashboard, accompanied by a warning message relating to the engine oil system.

When an oil-related warning shows up with no obvious explanation, it naturally raises alarm. The Range Rover Velar engine warning lights were a serious concern for Mr J. What was behind them? Was the vehicle safe to keep driving? And could leaving it risk making things worse?

Mr J, from Milton Keynes, contacted Roade Main Garage in Northampton on the recommendation of a friend. He wanted the fault properly looked into, with a clear explanation of what was causing the warnings and what needed to be done.

The vehicle was booked in and with us shortly after.

Reviewing the Reported Symptoms and Running Initial Checks

Before any diagnostic equipment was connected, our technicians at Roade Main Garage, Northampton, sat down with Mr J to understand the background. We asked when the warnings had first appeared, whether they had stayed on or come and gone, and whether anything had changed with how the vehicle was running.

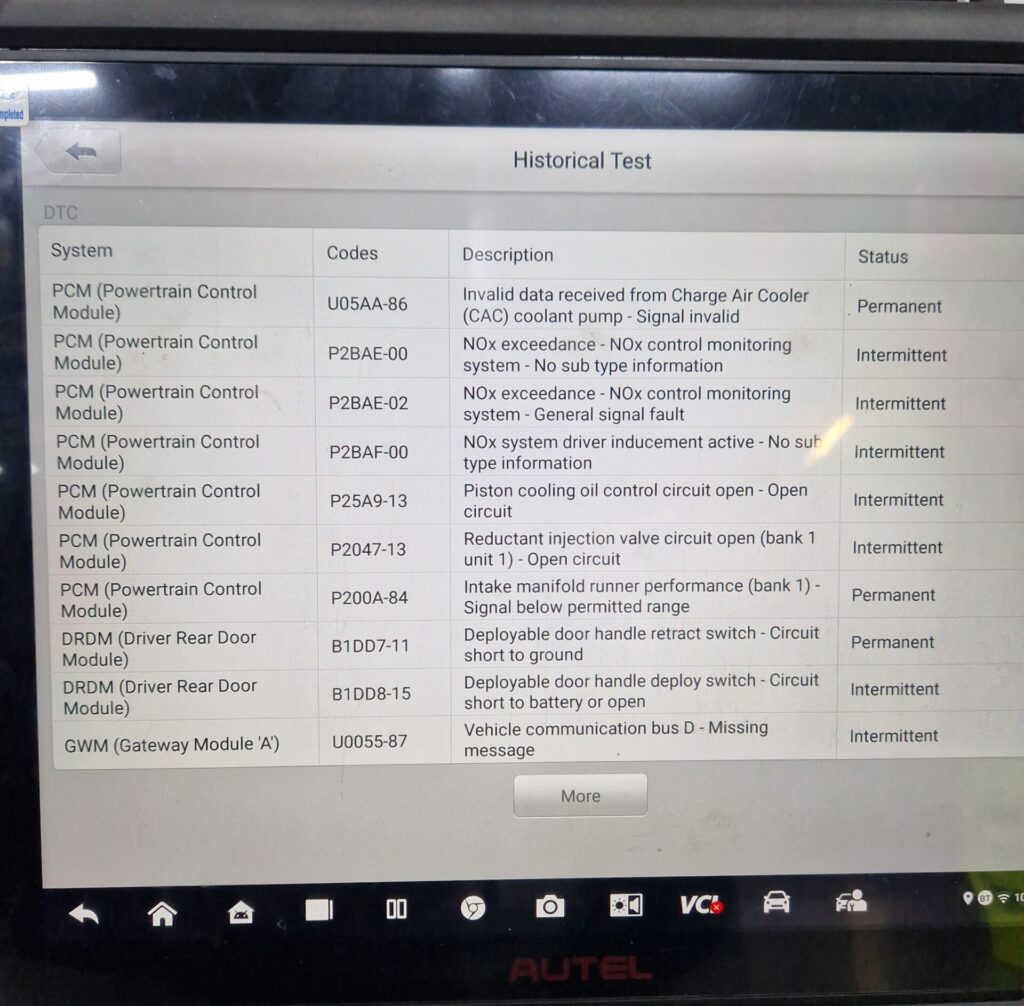

From there, our technicians connected dealer-level diagnostic equipment and completed a full system scan. One stored fault code was returned:

• P25A9-13: Piston cooling oil control circuit open. The engine control module (ECM) had detected an open circuit in the electrical circuit of the piston cooling oil control valve.

The job of the piston cooling oil control valve is to control the flow of engine oil to oil jets inside the engine block. The jets direct oil onto the underside of the pistons, helping to control piston temperature. If the electrical circuit supplying this valve is interrupted, the ECM may not be able to actuate it correctly, meaning oil flow to the piston cooling jets may not be controlled as intended.

This alone can bring on the engine management light and generate an oil-related warning message, even when the oil level is exactly where it should be. The warning reflects the engine’s ability to control oil flow to the piston cooling system, not necessarily a problem with the oil level.

The fault code was on record and the symptoms accounted for. Our technicians proceeded with a structured diagnostic process to confirm the root cause of the Range Rover P25A9 fault.

Pinpointing the Source of the Range Rover P25A9 Fault

The stored fault code gave our technicians a strong lead for the P25A9 Range Rover diagnostic. It pointed to an open circuit, but didn’t narrow down where in the circuit the fault lay. The wiring, connector, valve, or another part of the circuit could all have been the cause. Each needed to be tested and ruled out in turn.

Step 1: Manufacturer technical data review

Our technicians began by consulting the manufacturer’s technical information system. This covered known issues, technical service bulletins, recalls, and field remedies associated with the P25A9 fault on the Range Rover Velar.

• Reviewing this information first ensures our diagnostic process is built on the latest technical guidance.

Step 2: Wiring harness inspection

A visual inspection of the wiring harness running to the piston cooling oil control valve was carried out. Our technicians checked for physical damage, chafing, corrosion, or any sign of disturbance that might explain the open circuit.

• The harness was in good condition with no visible faults.

Step 3: Connector and terminal pin checks

The electrical connector at the piston cooling oil control valve was inspected, together with the terminal pins inside it. Corrosion, a displaced pin, or a connection that has worked loose can all result in an open circuit reading, regardless of the condition of the wiring.

• The connector and terminal pins were in acceptable condition. No corrosion or mechanical faults were present.

Step 4: Oscilloscope testing

Our technicians used an oscilloscope to assess the electrical integrity of the wiring running between the engine control module and the piston cooling oil control valve. This allowed our technicians to observe signal and supply behaviour under live operating conditions, rather than relying on a static resistance check alone.

• The wiring tested within expected parameters. The circuit between the control module and the valve was intact.

Step 5: Valve activation test

With the wiring, connector, and terminals all cleared of fault, the valve was the logical next step. Our technicians used dealer-level diagnostic software to command the valve to activate and monitor its response.

• The valve did not respond as expected. Testing confirmed an electrical failure within the valve, establishing it as the root cause of the Range Rover P25A9 fault.

Each part of the circuit had been tested individually and cleared. The wiring and all connections passed all checks, confirming that the fault rested with the valve itself.

Resolving the Issue: Range Rover Oil Control Valve Replacement

The findings were conclusive. Our team at Roade Main Garage contacted Mr J to talk through what had been discovered. We explained how each part of the circuit had been tested and cleared, and why the piston cooling oil control valve needed replacing. Mr J gave his go-ahead and the repair was carried out.

Here’s what was involved:

• The failed piston cooling oil control valve was removed from its position in the engine block. The valve is located beneath other engine components, and accessing it called for careful disassembly to avoid disturbing adjacent systems.

• A new replacement valve was fitted, with seating, sealing, and electrical connection all checked and confirmed before reassembly.

• The harness and connector were reconnected to the new component.

• All stored fault codes were cleared from the engine control module.

• Post-repair system checks confirmed the replacement valve was responding correctly to the engine control module.

• A final system scan verified no outstanding fault codes remained and the oil-related warning message had cleared.


The Difference After the Piston Cooling Oil Control Valve Replacement

Mr J picked up his Range Rover Velar from Roade Main Garage with the engine management light off and the dashboard free of warnings. The piston cooling oil control valve failure had been confirmed, corrected, and verified through post-repair testing, with the system operating as it should.

The outcome spoke for itself: a careful, structured investigation, a fault traced to a failed piston cooling oil control valve, and the problem put right in one visit. Our team at Roade Main Garage kept Mr J fully informed from start to finish, with clear and open communication throughout.

Roade Main Garage gave Mr J a shorter wait, a competitive repair cost, and the peace of mind that comes from a thorough, professional diagnostic approach to the Range Rover P25A9 fault.
